HighSpeed
Weirdos
Turntables, triggers, smoke, grips and more
The Result
Weirdos
Refers to the unique, custom-built devices that bring creative precision and unpredictable flair to our high-speed productions. This includes smoke machines for atmospheric effects, trigger systems that sync camera and motion events with split-second accuracy, motorized turntables for seamless 360° object rotation, crashboxes for dramatic impact captures, and specialized grip equipment engineered to safely manipulate props and rigs. These tools, often custom-integrated with our robotic and camera systems, enable us to push the boundaries of cinematic motion control and craft mesmerizing slow-motion visuals with exact timing and dynamic artistry.

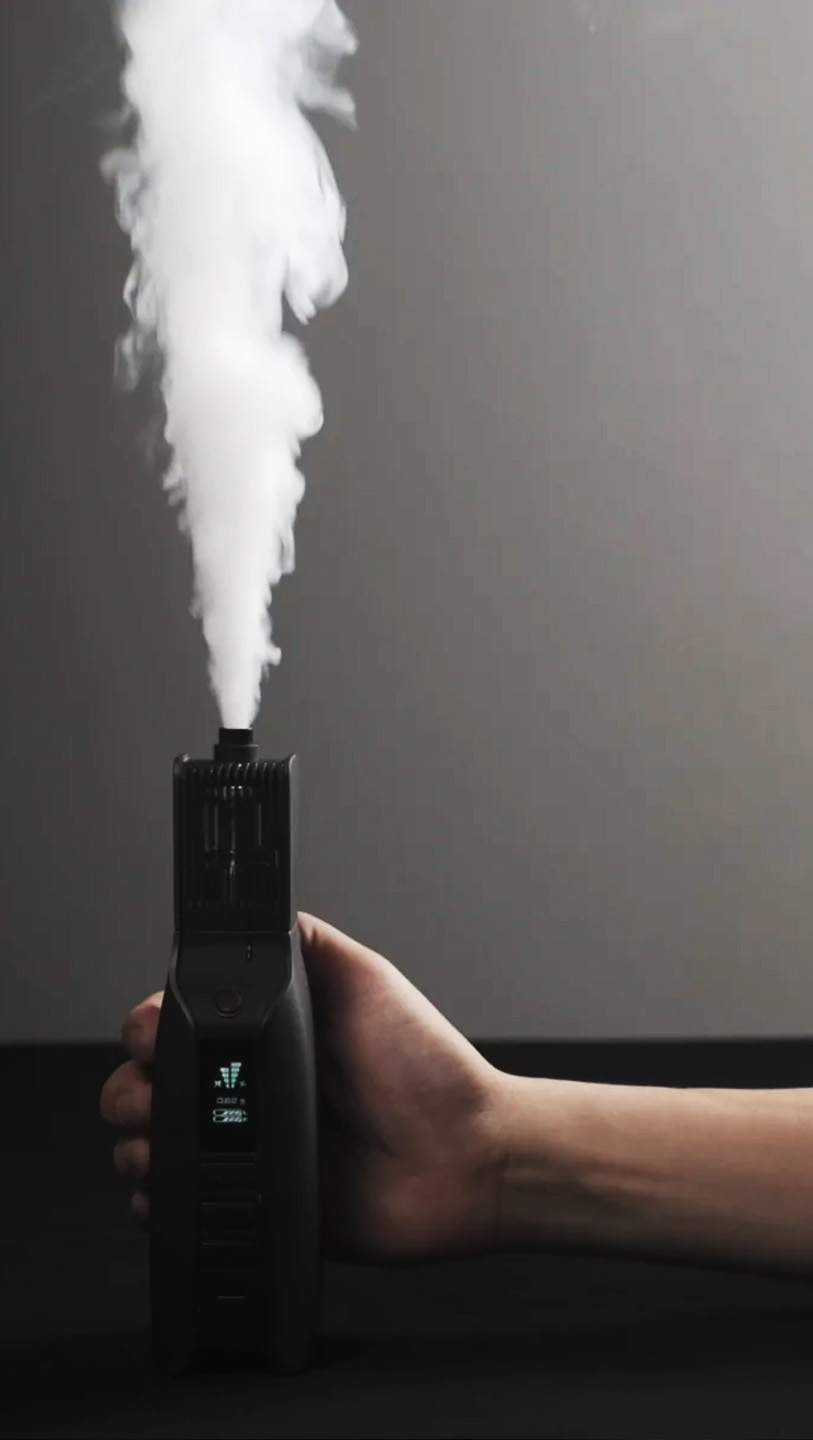

SmokeGENIE Professional Kit – Key Features
Versatile Smoke Effects: Capable of producing dense fog, atmospheric haze, low-hanging fog, dry ice-like effects, and steam-like jet pulses, offering a wide range of atmospheric options for various scenes.
High Smoke Output: Delivers up to 500 cubic feet per minute (CFM), ensuring rapid deployment of smoke to create desired effects quickly.
Food-Safe Smoke Formula: Employs a food-safe fog liquid composition, ensuring safety for both humans and clothing during use.
Compact Design: Weighs approximately 0.3 kg and measures 45 x 65 x 185 mm, making it highly portable and easy to maneuver in tight spaces.

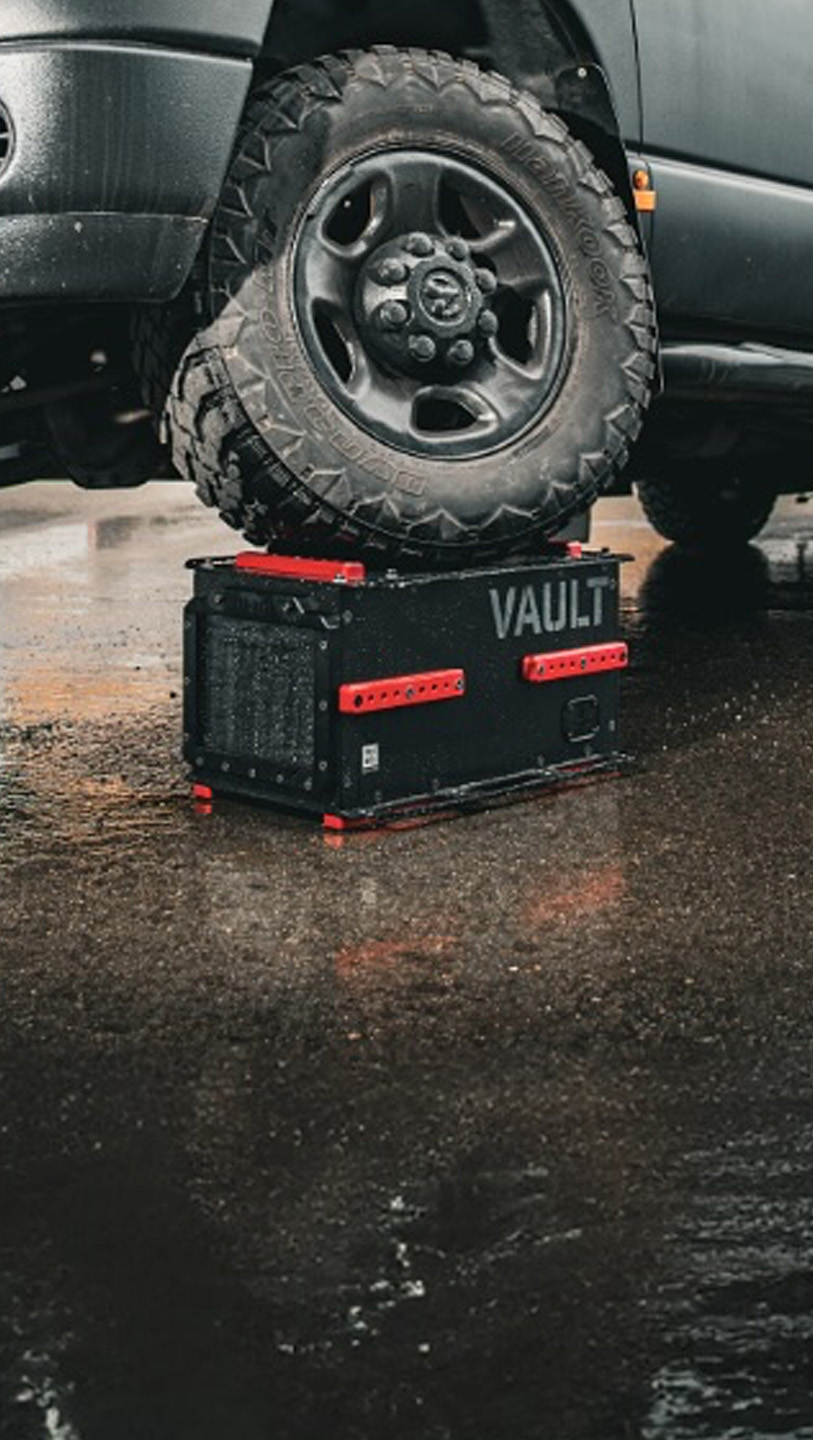

Crash box – Key Features
The Vault keeps your camera safe in any dangerous filming situation. Get the close-up of an explosion or rig it into a car about to crash. The camera will be protected from any flying debris, dust and drops of water.
Included with purchase
“The Vault” Crashbox, 3 x Transparent Acrylic Panel, Power Distribution & Cooling System
Product Dimensions
650 x 420 x 350 mm
Camera Dimensions (Max)
540 x 280 x 250 mm
Power Input
Battery, XLR4 Male
Power Outputs
XLR4 Female, 4 x D-Tap
Video Ports
2 x SDI Passthrough
RF Ports
RF SMA Passthrough
Heat Management
Active Cooling
Battery Plate
V-lock 12V, Gold Mount 12V, B-Mount 24V, Gold Mount + 24V, Core Helix 24V

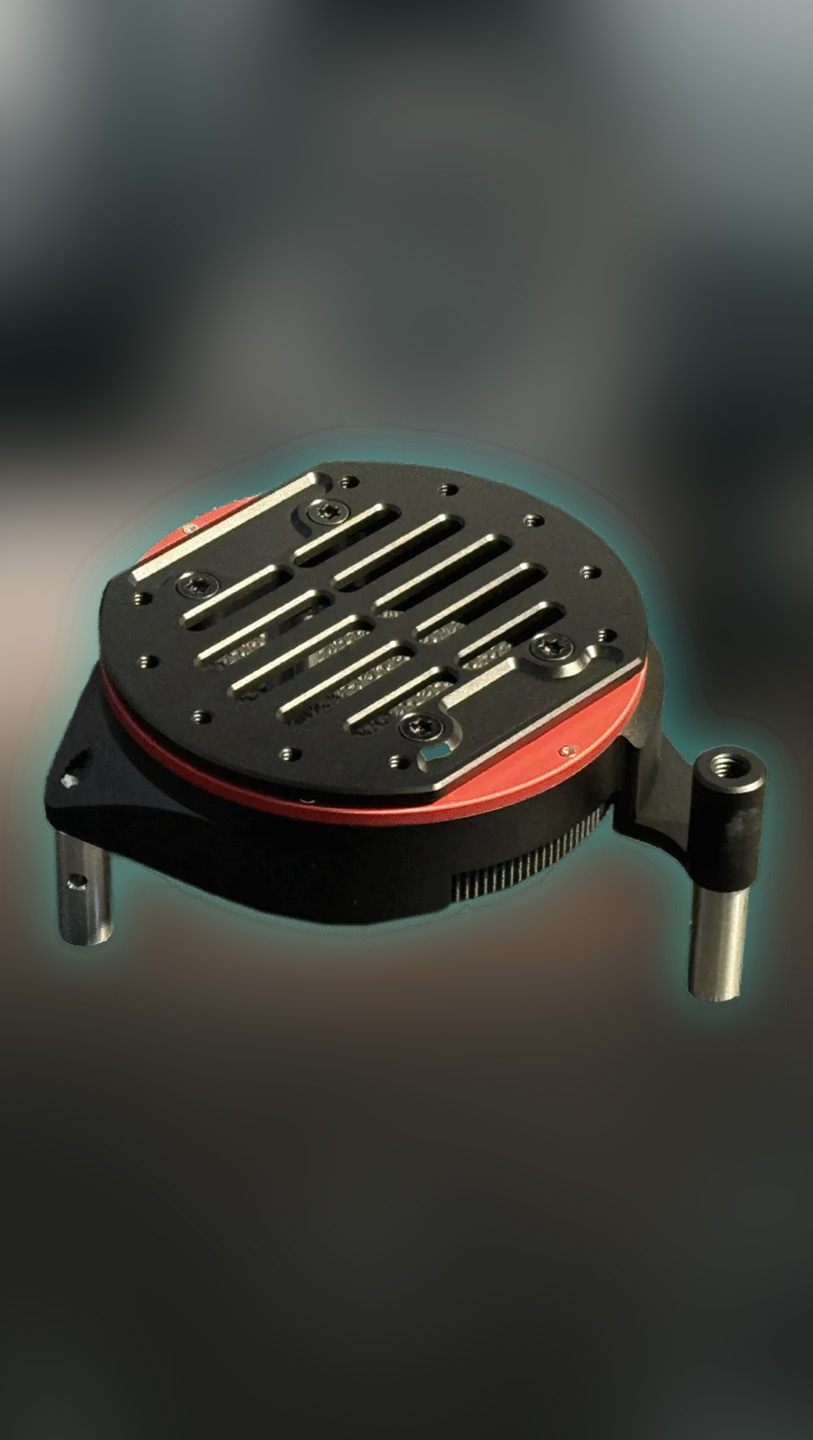

Bring dynamic motion to your vehicle-mounted shots with this 360° camera rig, designed for professional productions that demand versatility and reliability. Built to mount securely on cars, trucks, or specialty rigs, it enables continuous 360-degree rotation for limitless creative camera movement. The system can also be rigged upside down, making it easy to achieve dramatic low-angle or overhead perspectives.
The rig is designed to integrate seamlessly with your existing control ecosystem. It operates via a focus remote and focus motor (not included), and is compatible with most major focus controllers and motor manufacturers, giving you the freedom to work with the gear you already trust.
Maximum payload 7kg

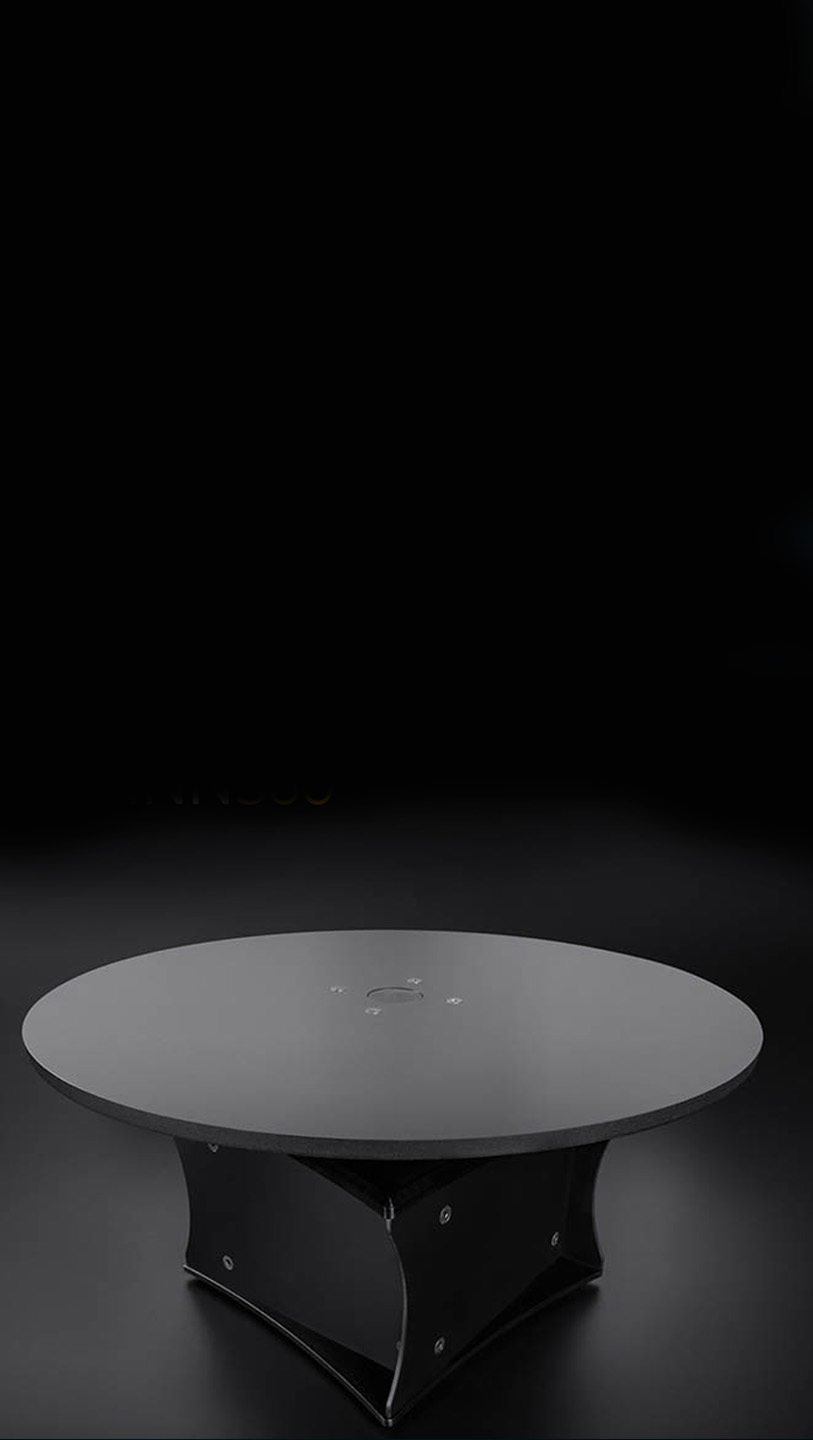

Motorized Turntables – Key Features
Precise Rotation Control: Offers programmable rotation speeds and directions, enabling consistent and repeatable motion essential for high-speed filming.
High Payload Capacity: Supports heavy objects, accommodating the weight of cameras and rigs used in high-speed cinematography.
1Unit for up to 100kg
1unit for up to 1kg
LOW & DUTCH SHOTS
with SMOOTH PAN & TILT CAPACITY
Dutch Capabilities
2 Camera/Fluid Head tie down knobs & pan brake
30 degree tilt range from side to side & tilt brake
3/8″-16 tapped holes for easy mounting
combine w/fluid head to achieve straight down shot

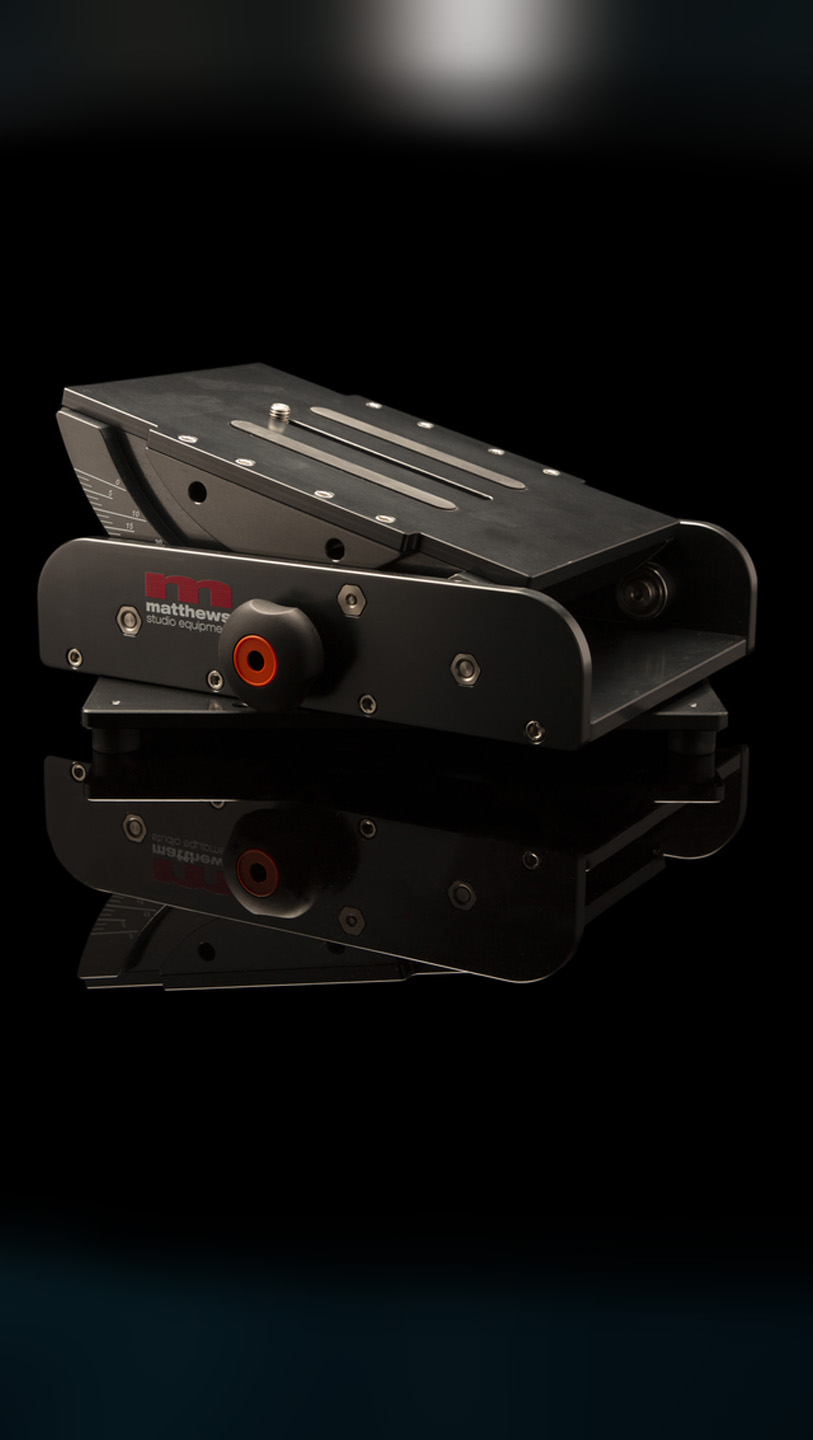

Matthews CAM Tank is designed to accept all large format camera plates or direct mount to any large or medium format camera equipped with 3/8″-16 mounting holes. The CAM Tank was designed for extremely low shots, without taking away your ability to pan and tilt the camera. It is also used to achieve dutch angles when mounted to a fluid head, or shots designed to be pointed straight down off of a fluid head on a tripod or jib. The bottom of the plate has 17 strategically placed 3/8″-16 tapped holes spaced 1″ apart, complying with Motion Picture Industry Standards. The system is CNC machined out of 6061 T6 aluminum, stainless steel hardware. The pan bearing uses a machined polyoqymethyline, delrin disk, which self-lubricates and has an endurance rating 100x more than any plastic. The tilt system uses 4 premium NSK deep grooved ball bearings, made in Japan. Both pan and tilt functions come with brakes for lock off shots and camera safety.
Pan Range: 360 Degrees
Tilt Range: 30 degrees in each direction
Weight Capacity: 180lbs (82kg)
Minimum Camera Height: 4″ (101mm)
Length and Width: 10″x7″ (264mmx177mm)
Total Weight in Case: 15lbs (7kg) CAM Tank only is 10lbs (4.5kg)
Mantis box, for up to 8 steppers motors and 8 trigger selenoids 24volts

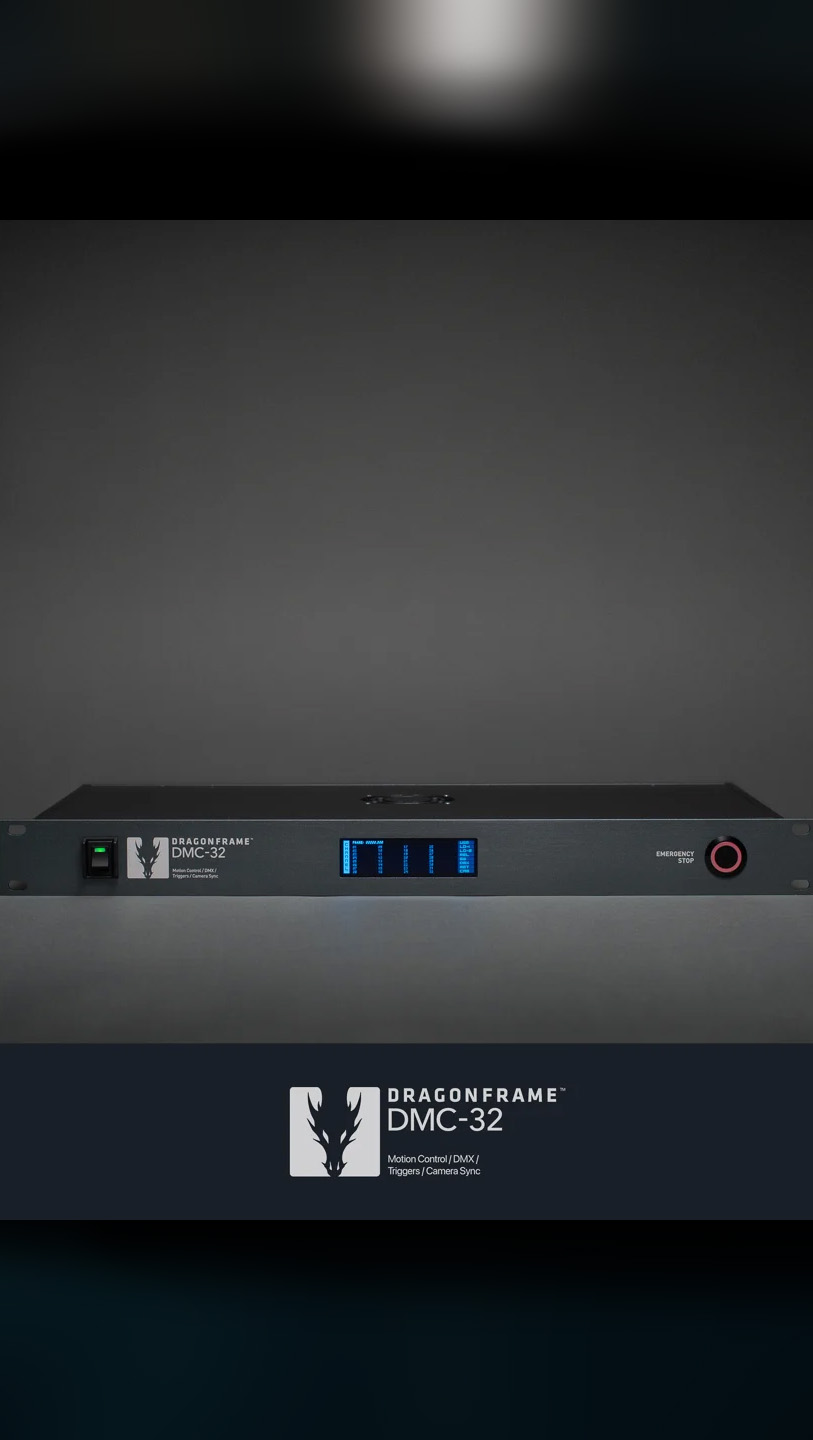

DRAGONFRAME MASTER CONTROLLER
The DMC-32 (Dragonframe Master Controller) is a 32 axis motion control coordinator for use with Dragonframe software.
Outputs 32 channels instead of 16. (The DB37 carries channels 17-32 instead of repeating 1-16.)
Powered by the improved Zynq 7Z020 processor (instead of DE0-Nano).
LTC input for perfectly synchronized, repeatable live-action passes.
Integrated fan for temperature control.
Uses a 3.5mm TRS input (mini stereo headphone jack) for camera shutter/meter instead of XLR.

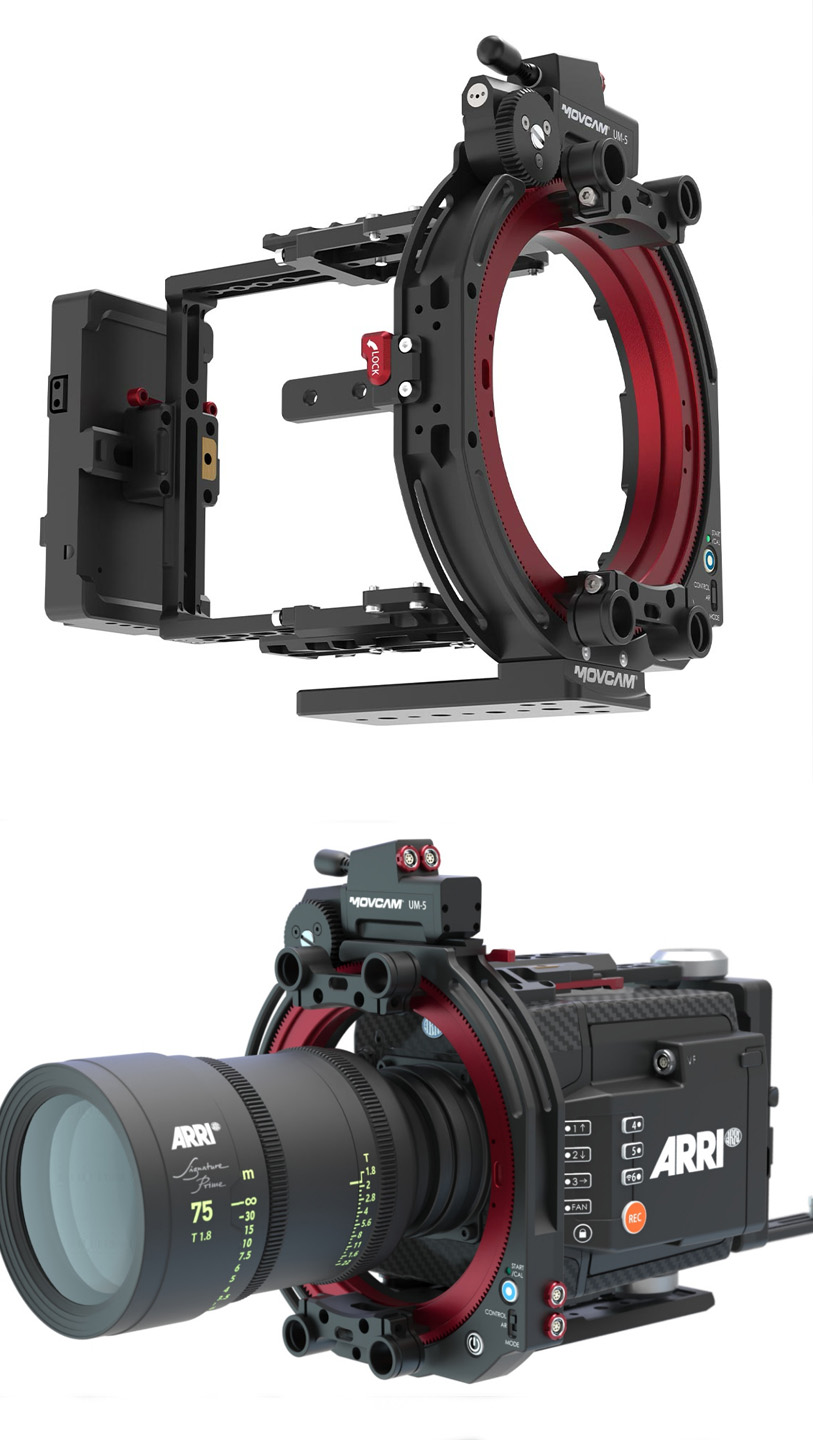

Roll Rig II is a device developed by Chinese company Movcam with an aim to keep the camera perfectly levelled in any shooting situation or to use it as a 4th axis for unlimited roll.
It can be used on top of the steadicam sled, and that way it provides you a perfect level no matter in what position is your sled.
It can be used on various stabilized heads to act as a 4th axis, that means you’ll get unlimited roll on a push of a button.
It can be used on a tripod or dolly to achieve perfectly centered unlimited roll.
It can be used in handheld mode, to keep the roll in level or to achieve unlimited roll.
Arri Alexa Mini and Mini LF – included in the Basic Kit
Arri Alexa 35
Sony Venice 1 and Venice 2
Red Raptor
