HighSpeed
Robotics
Highend Robots or Motorized Sliders
The Result
High-speed robots
The Staubli TX90XL and TX40 are the backbone of our motion control system. These industrial-grade robotic arms are engineered for extreme precision, repeatability, and speed—making them ideal for capturing ultra-fast cinematic sequences with perfect timing. Integrated with high-speed cameras and custom control software, they allow for dynamic, frame-accurate camera moves, impossible to achieve by hand. Whether it’s a tabletop product shot or a high-impact stunt, our robotic systems synchronize flawlessly with Phantom and Freefly cameras to deliver repeatable, millisecond-level precision for creative and technical excellence.
Staubli TX90XL TX40 – Key Features
Extended Reach: 1,450 mm arm span for wide, sweeping motion control moves
High Payload Capacity: Handles up to 6 kg—perfect for cinema cameras and lens packages
Extreme Repeatability: ±0.05 mm precision ensures flawless, frame-accurate motion every time
High-Speed Movement: Fast joint speeds enable dynamic camera paths for high-speed shooting
Compact Base Footprint: Saves space on set while maximizing range and flexibility
6-Axis Articulation: Enables complex, fluid camera motion across all creative axes
Industrial-Grade Build: Built for 24/7 operation under demanding conditions
Real-Time Control: Seamless integration with motion control software and triggering systems
Compatible with Cinematic Workflows: Easily rigged with Phantom, Freefly, and lens control systems

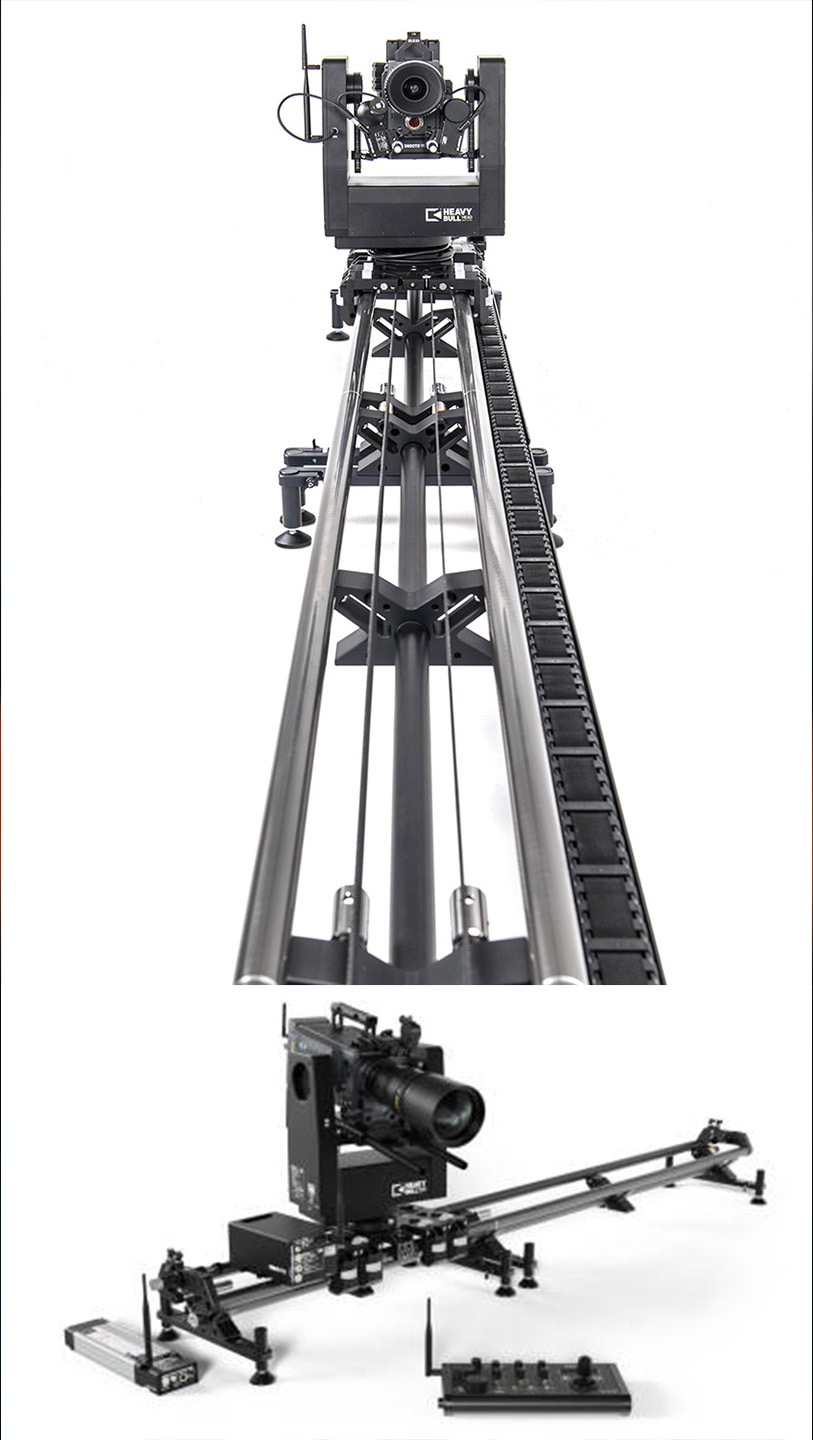

Slidekamera ATLAS MOCO – Heavy Bullhead Servo Kit – Key Features
High Payload Capacity: Supports up to 20 kg of camera gear—ideal for heavy cinema and broadcast rigs
High-Speed Servo Motion: Dual servo-controlled slider and remote head system delivering silent, smooth motion up to 2 m/s for fast and precise moves
Exceptional Precision & Repeatability: Engineered for pixel‑level consistency and frame‑accurate repeat loops
Modular Slider System: Comes with rail sections (0.8 m + 1.2 m + 2m), expandable up to 12 m with tool-free assembly; robust truss construction provides structural rigidity with no deflection
Extended Dolly MK2: 24‑wheel dolly engineered for stability at any angle—including horizontal, vertical, or upside-down setups; includes 75/100 mm bowl adapter and accessory mounting ports
Heavy Bullhead 2-Axis Head: Reinforced remote head with low vibration, silent operation, and full pan/tilt control under heavy camera payloads
Magnetic & Pneumatic Bumpers: Pneumatic side brakes and bumpers allow smooth manual operation and help prevent end-of-rail collisions for safer setups
KAIROS 2 Motion Controller: Intuitive multi‑axis controller with live control, motion keyframing, loop, timelapse, playback, and networked Wi‑Fi interface
Durable Connectivity & Design: LEMO connectors, timing belt drive, slim cabling, and modular frames designed for reliable high-use environments up to 20 m travel
Specialty Camera Systems
Quick Mounting & Accessories: Self-adjusting adapters for 75/100 mm bowls, universal ⅜″ mounting threads, V‑Mount plate, transport cases for head and controller for fast rigging and teardown

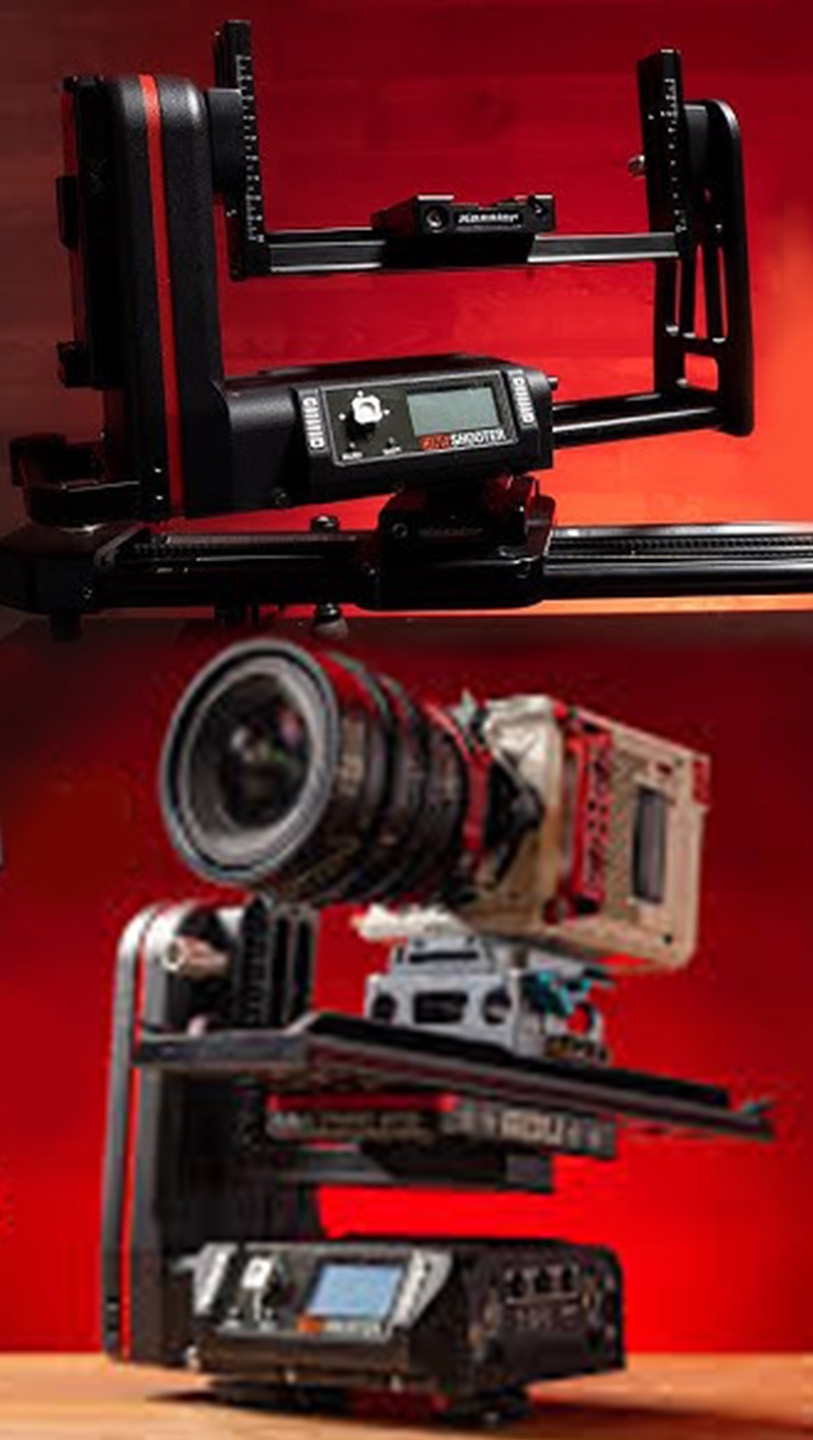

Kessler CineShooter – Key Features
Nodal Pan & Tilt Head & Roll: Precision-engineered to rotate around the lens’s nodal point—eliminating parallax and distortion during motion
1.5 m Slider: Paired with a modular, belt-driven slider system offering 1.5 meters of smooth, stable travel—ideal for tabletop, product, or dramatic lateral shots
Payload Capacity: Supports up to 15 lb (≈ 6.8 kg) standard, expandable to 25 lb (≈ 11 kg) with Heavy Duty Support Module
Ultra-Lightweight Build: Head weighs just ~2.4 kg, making it easy to rig for mobile or compact setups
High-Precision Motion: CineShooter+ model uses low-backlash helical planetary gearboxes with sub-0.01° resolution and 40% more torque
Multi-Axis Expansion: Natively supports 2 axes (Pan/Tilt), expandable to 5+ axes with additional motor modules and lens control systems
Versatile Shooting Modes: Timelapse, live motion, loop, stop motion, silent mode, fast mode, and even facial tracking (beta)
Control Flexibility: Operate via onboard joystick, PS4/Xbox controller, mobile app, or full-featured kOS software on Mac, Windows, or iOS
FreeMotion™ Support: Optional Smart Handle accessory enables organic hand-guided keyframing by relaxing motor torque
Professional Power Options: 12 V DC via LEMO or MagPak; V-Mount and Gold Mount battery plate compatibility
Modular & Rigid Slider: Tool-less setup and rock-solid construction ensure zero flex over the full 1.5 m travel, even under heavy loads
Quiet & Repeatable: Designed for studio sound stages and high-speed precision loops—ideal for VFX and product cinematography
